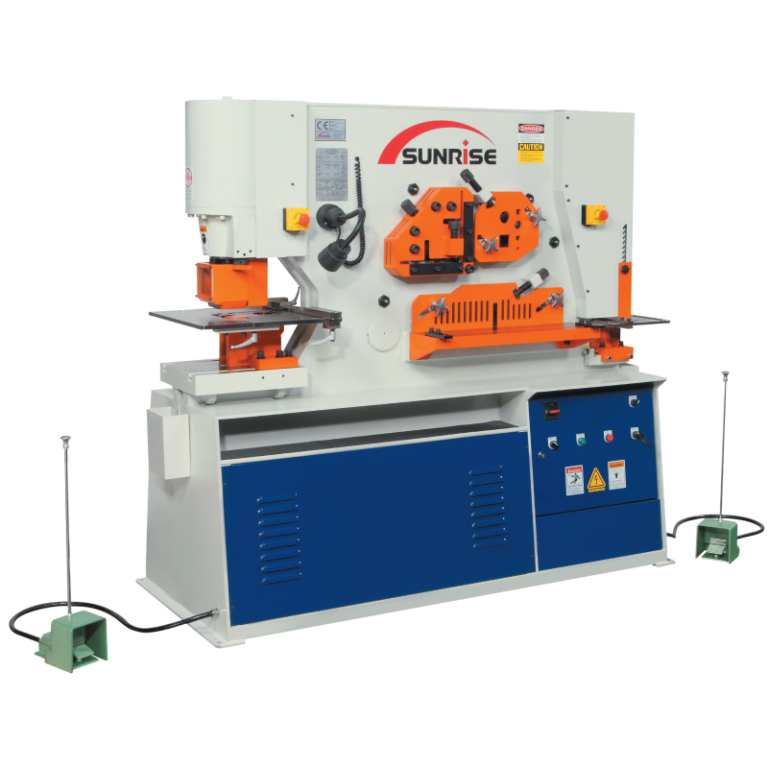

    Hydraulic Ironworker – Single Cylinder Models – IW 45M

    Features

    • Four stations
    • One Station operated at a time
    • Punching Station
    • Angle Shearing Station
    • Flat / Plate Shearing Station
    • Round & Square Bar Shear Station
    • Notching station can be fitted at Punching
    Kindly download Catalogue for more details on Accessories

    http://en.machine-catalog.com/adsl/Outer_ec_catalog/566

    Hydraulic Ironworker – Single Cylinder Models – IW 50A

    Features

    • Five stations
    • One Station operated at a time
    • Punching Station
    • Angle Shearing Station
    • Flat / Plate Shearing Station
    • Notching Station
    • Round/Square Bar Shear Station
    • Vertical Movement Ram
    • for Punching
    Kindly download Catalogue for more details on Accessories

    http://en.machine-catalog.com/adsl/Outer_ec_catalog/566

    Hydraulic Ironworker – Single Cylinder Models – IW 60H

    Features

    • Five stations
    • One Station operated at a time
    • Punching Station
    • Angle Shearing Station
    • Flat / Plate Shearing Station
    • Notching Station
    • Round/Square Bar Shear Station
    • Z’ Shaped aperture at Angle station for doing Internal & External Mitre shear on Angles
    Kindly download Catalogue for more details on Accessories

    http://en.machine-catalog.com/adsl/Outer_ec_catalog/566

    Hydraulic Ironworker – Double Cylinder Models – IW 60S ~ IW 165SD

    Salient Features

    • Five stations
    • Both Stations operated at a time
    • Punching Station
    • Angle Shearing Station
    • Flat / Plate Shearing Station
    • Round & Square Bar Shear Station
    • Notching station
    • Two Control Foot Pedals
    • Available in Two Throat Depths – 310mm Throat – ‘S’ Series – 510mm Throat – ‘SD’ Series

    Hydraulic Ironworker – Single Cylinder Models – KSeries – IW 45K

    Salient Features

    • Compact Unit – Lower foot print
    • Five stations
    • One Station operated at a time
    • Punching Station
    • Angle Shearing Station
    • Flat / Plate Shearing Station
    • Round & Square Bar Shear Station
    • Notching station
    • Manual Back gauge
    IW 60B is offered in IW 60K version where instead of Notching Station, Single ‘V’ Press brake is provided.

    www.sunriseiw.com/products_view_iw60k

    Hydraulic Ironworker – Single Cylinder Models – KSeries – IW 60K

    Salient Features

    • Compact Unit – Lower foot print
    • Five stations
    • One Station operated at a time
    • Punching Station
    • Angle Shearing Station
    • Flat / Plate Shearing Station
    • Round & Square Bar Shear Station
    • Notching station
    • Hyd. Hold-down for all shearing
    • Electric Back gauge
    IW 60B is offered in IW 60K version where instead of Notching Station, Single ‘V’ Press brake is provided.
    Connect to following link for more details on accessories & Tooling

    www.sunriseiw.com/products_view_iw60k

    Hydraulic Ironworker – Single Cylinder Models – KSeries – IW 85KD

    Salient Features

    • Compact Unit – Lower foot print
    • Five stations
    • Two Cylinders – Dual Operation
    • 410mm Punching Station throat
    • Hyd. Hold-down for all shearing
    • Mubea type tooling for Punching
    • Electric Back gauge
    • Channel Notching*
    IW 60B is offered in IW 60K version where instead of Notching Station, Single ‘V’ Press brake is provided.
    Connect to following link for more details on accessories & Tooling

    www.sunriseiw.com/products_view_iw85kd

    Hydraulic Punching Machines – PM 35T ~ PM 200XT

    Salient Features

    • Heavy duty Punching Base
    • Three Throat Options – 310mm Throat – ‘T’ Series, 510mm Throat – ‘LT’ Series , 760mm Throat -‘XT’ series
    Kindly watch the video Link of Sunrise Hydraulic Punching Machine

    http://www.sunriseiw.com/products_view_pm55lt.html

    Kindly follow the link for more details on Punching Accessories

    http://www.sunriseiw.com/products_view_pm55lt.html

    Hydraulic Bending Machines – Manual Back gauge

    Salient Features

    • Heavy Duty Structure
    • Heavy Table construction
    • User Friendly operation
    • Available in Manual Back gauge & NC Back Gauge
    Kindly follow the link for more details HBM – Manual Back gauge

    http://www.sunriseiw.com/products_view_hbm_40_75.html

    Video demo of HBM with NC Back Gauge

    https://www.youtube.com/embed/W7v4gLFSQsY?autoplay=1

    Hydraulic Bending Machines – NC Back gauge

    Salient Features

    • Excellent repeatability of cylinder stroke at accuracy of ± 0.1mm
    • Easy to learn programmable Controller
    • Branded Electrical & Hydraulic components ensure reliability
    • Wide range of tooling options available
    • Customized tooling also available for specific requirement
    Kindly follow the link for more details HBM – NC Back gauge

    http://www.sunriseiw.com/products_view_ncbackgauge.html

    Kindly download the catalogue of HBM Hydraulic Bending Machine

    http://en.machine-catalog.com/adsl/Outer_ec_catalog/566

    Hydraulic Ironworkers – CNC Automation Products – Semi Auto Table

    • Semi-Auto CNC positioning tables are plate, angle & channel positioning system with simple user friendly interfaces. Factory installed tables on Dual cylinder Iron worker or Punching Machines.
    Kindly follow link for more details:

    http://www.sunriseiw.com/products_view_iwnc165sd.html

    Kindly follow link for video demo

    https://www.youtube.com/embed/KpbsCM3joKE?autoplay=1

    Hydraulic Ironworkers – CNC Automation Products – Fully Auto Table

    • Fully Auto CNC system deliver accurate positioning. User friendly controller.
    • Hydraulic clamping with pressure sensor for strong grip. Hydraulic stripper comes with exchangeable plates. Ball transfer units for support table.
    Kindly follow link for more details:

    http://www.sunriseiw.com/products_view_pm80lt_cnc.html

    Kindly follow link for video demo

    https://www.youtube.com/embed/OlUIZRS-d_I?autoplay=1

    Hydraulic Ironworkers – CNC Automation Products – CNC Plate Feeder

    • The Auto CNC Plate Shear Feeding system is available on & above100Tons.
    • The system automatically process the plate to length. It also features knurled drive Rollers, Hyd. hold-down & proximity sensors to achieve high in product.
    • Omron touch controller provides user simple & user friendly programming
    Kindly follow link for more details:

    http://www.sunriseiw.com/products_view_pm80t_cnc.html

    Kindly follow link for video demo

    https://www.youtube.com/embed/-TcnENPbyxM?autoplay=1

    Hydraulic Ironworkers – CNC Automation Products – CNC Angle Feeder PM 80T ANC

    • ANC Angle Feeder is fully automatic single axis in-feed system for punching angles, channel webs & flats in 6 metre X axis travel distance. ANC features
    • Hydraulic clamping as well as pneumatic material clamping. In-feed roller table and support stand for material support.
    Kindly follow link for more details:

    http://www.sunriseiw.com/products_view_pm80t_anc.html

    Kindly follow link for video demo

    https://www.youtube.com/embed/kyErFcgeJv0?autoplay=1

    Hydraulic Ironworkers – CNC Automation Products – APS Auto Punch & Shear APS 30080M

    • The APS auto Punch & Shear combines a punching machine with a Shearing Machine and a CNC in-feed system for punching & shearing flat bars in one fully automatic operation. The in-feed system is standard at 6000mm X-travel with option to extend longer. The touch screen controller is podium mounted and features pre-set patterns, making programming a simple task.
    Kindly follow link for more details:

    http://www.sunriseiw.com/products_view_aps30080m.html

    Kindly follow link for video demo

    https://www.youtube.com/embed/DtIIrRdhHZQ?autoplay=1

    Hydraulic Ironworkers – CNC Automation Products – ALS Angle Line System ALS 1506S

    • ALS 1506 is able to punch & shear 2″ to 6″ angle & flat bar in one fully automatic operation. ALS 1506 comes with 6 Meter feeder. Main Station come in one unit with fully enclosed covers meeting safety standard for the
      operator. It is a shearing, punching & stamping combined machine.
    • Nexcom fan less PC based controller with MS windows embedded version.
    Kindly follow link for more details:

    http://www.sunriseiw.com/products_view_als_1506.html

    Kindly follow link for video demo

    https://www.youtube.com/embed/kGArN49pcl4?autoplay=1

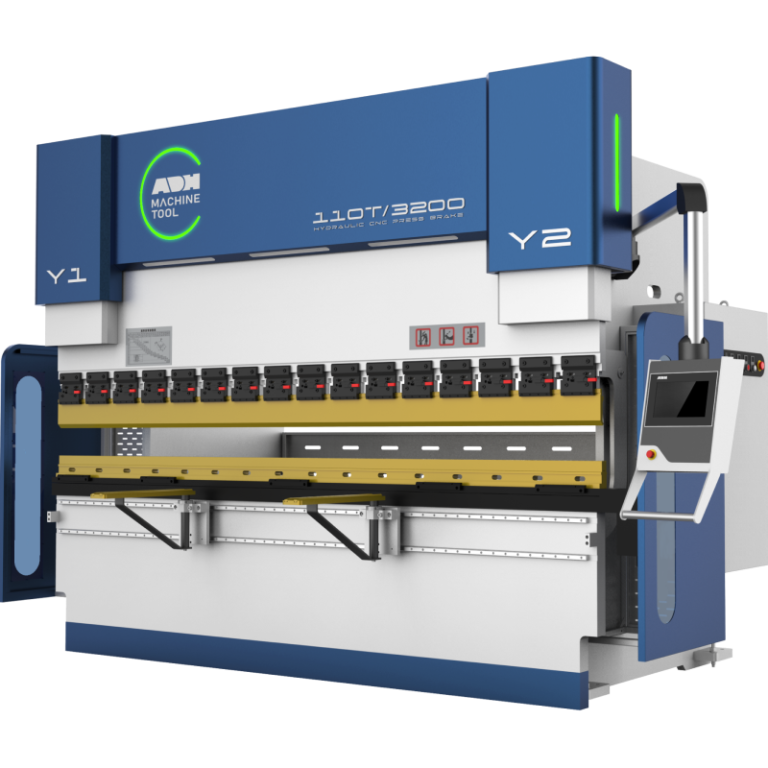

    Hydraulic NC / CNC Press Brakes – 67E / 67K Series – NC Press Brakes

    Anhui Donghai Machine Tools Ltd., Ma’anshan is a leading & specialised manufacturer of Sheel Metal Machineries in China, producing full range sheet metal Machines like Hydraulic NC/CNC Shearing Machines, NC/CNC/Tandem Pressbrakes, CNC Fiber Laser Machines. ADH Machines are exported to over 50 countries and ranked amongst Top Five Companies in China.

    Hydraulic NC / CNC Press Brakes – WAD / WADE – CNC Press Brakes

    Anhui Donghai Machine Tools Ltd., Ma’anshan is a leading & specialised manufacturer of Sheel Metal Machineries in China, producing full range sheet metal Machines like Hydraulic NC/CNC Shearing Machines, NC/CNC/Tandem Pressbrakes, CNC Fiber Laser Machines. ADH Machines are exported to over 50 countries and ranked amongst Top Five Companies in China.

    Note: ADH offers Pressbrakes upto 800T x 6000mm as single unit and higher capacities on TANDEM Series (Multiple Synchro Units)

    CNC Fiber Laser Cutting Machines – ULF Series

    Anhui Donghai Machine Tools Ltd., Ma’anshan is a leading & specialised manufacturer of Sheel Metal Machineries in China, producing full range sheet metal Machines like Hydraulic NC/CNC Shearing Machines, NC/CNC/Tandem Press brakes, CNC Fiber Laser Machines. ADH Machines are exported to over 50 countries & ranked amongst Top Five Companies in China.

    CNC Fiber Laser Cutting Machines – ULE Series

    Anhui Donghai Machine Tools Ltd., Ma’anshan is a leading & specialised manufacturer of Sheel Metal Machineries in China, producing full range sheet metal Machines like Hydraulic NC/CNC Shearing Machines, NC/CNC/Tandem Press brakes, CNC Fiber Laser Machines. ADH Machines are exported to over 50 countries & ranked amongst Top Five Companies in China.

    Hydraulic NC / CNC Shearing Machines – 12K Series – NC Swingbeam Shears

    Anhui Donghai Machine Tools Ltd., Ma’anshan is a leading & specialised manufacturer of Sheel Metal Machineries in China producing full range Sheet Metal Machines like Hydraulic NC/CNC Shearing Machines, NC/CNC/Tandem Pressbrakes, CNC Fiber Laser Machines. ADH Machines are exported to over 50 countries and ranked amongst Top Five Companies in China.

    Hydraulic NC / CNC Shearing Machines – 11K Series – NC Guillotine Shears

    Anhui Donghai Machine Tools Ltd., Ma’anshan is a leading & specialised manufacturer of Sheel Metal Machineries in China producing full range Sheet Metal Machines like Hydraulic NC/CNC Shearing Machines, NC/CNC/Tandem Pressbrakes, CNC Fiber Laser Machines. ADH Machines are exported to over 50 countries and ranked amongst Top Five Companies in China.

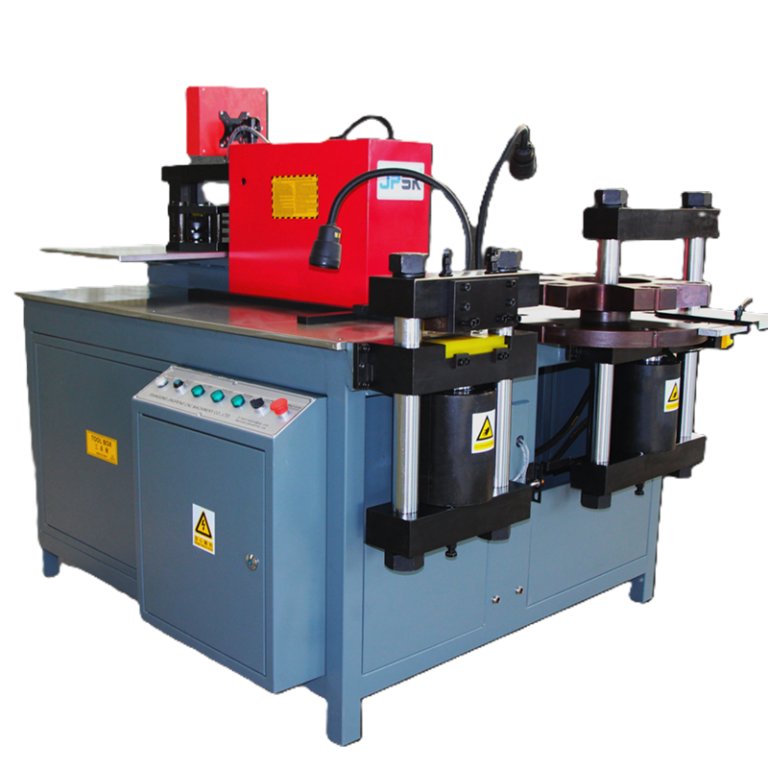

    CNC Busbar Processing Machine – CNC Bending – ESK

    Salient Features

    • Three Pumps + Three Motors
    • All Stations can work at simultaneously
    • Separate Elevated Table for Bending.
    • Cutting & Bending operation will not foul while working simultaneously

    CNC Busbar Processing Machine – CNC Bending – CSK

    Salient Features

    • Single Pump + Single Motor
    • One Station can work at a time
    • Selector Switch for changing station
    • Standard Table for Bending

    CNC Busbar Processing Machine – CNC Bending – SK

    Salient Features

    • Three Pumps + Three Motors
    • All Stations can work simultaneously
    • Standard Single Table
    • No elevated Table

    CNC Busbar Processing Machine – CNC Bending – DM / CM

    Salient Features – DM Series

    • Three Pumps + Three Motors
    • All Stations can work at same time
    • Standard Table for Bending & Cutting

    Salient Features – CM Series

    • Single Pump + Single Motor
    • One Station can work at a time
    • Selector Switch for changing station
    • Standard Table for Bending & cutting

    CNC Busbar Processing Machine – Portable

    Salient Features

    • Poratable Light Duty Model
    • All stations can be fitted on table
    • Table can be moved to places
    • Works on 220 Volts Single Phase supply

    CNC Busbar Punching & Shearing Machine 200E

    High Precision CNC busbar punching and shearing machine. High degree of automation, accurate positioning and reliability for mass production. 200E is combined with automatic feeding, positioning, clamping, punching, cutting, embossing, mold change & collection.

    CNC Busbar Bending Machine 50Z-H

    CNC-50Z-H adopt hydraulic power for bending The CNC servo block system controls the length of the bending work piece, which is powerful, low cost and cost-effective.

    CNC Busbar Bending Machine 50ZPS

    CNC Busbar Bending Machine 50Z series

    CNC busbar bending machine is a fully automated, high productive & precision busbar processing equipment.

    CNC 50Z PS model adopts high-power servo motor to offer power for bending process. The CNC servo material blocking system controls the length of the bending work piece, with high bending precision, accurate positioning and low noise.

    High Speed Precision Lathes – Win Ho ‘S’ Series

    Standard Features

    • Thermal Treated and precision ground alloy gears.
    • Meehanite Cast Bed – Thermal Treated and precision ground bed ways.
    • Precision Spindle Bearings for accuracy & Heavy metal removal.
    • Universal Gear Box for Imperial & Metric trading.
    • Tracks of cross slide & bed are lubricated with manual lubrication pump
    • Wear resistant Phosphor Bronze lead screw nuts.
    • Overload safety device to ensure safety when operating.
    • Durable reservoir oil bath type cross slide
    • Larger bed width which ensures higher rigidity and metal removal capability

    High Speed Precision Lathes – WinHo ‘M’ Sereis

    Standard Features

    • Thermal Treated and precision ground alloy gears.
    • Meehanite Cast Bed – Thermal Treated and precision ground bed ways.
    • Precision Spindle Bearings for accuracy & Heavy metal removal.
    • Universal Gear Box for Imperial & Metric trading.
    • Tracks of cross slide & bed are lubricated with manual lubrication pump.
    • Wear resistant Phosphor Bronze lead screw nuts.
    • Overload device to ensure safety during opertion.
    • Durable reservoir Oil bath type cross slide.

    High Speed Precision Lathes – Win Ho ‘L’ Series

    Standard Features

    • Thermal Treated and precision ground alloy gears.
    • Meehanite Cast Bed – Thermal Treated and precision ground bed ways.
    • Precision Spindle Bearings for accuracy & Heavy metal removal.
    • Universal Gear Box for Imperial & Metric thrading.
    • Tracks of cross slide & bed are lubricated with manual lubrication pump
    • Wear resistant Phosphor Bronze lead screw nuts.
    • Overload safety device to ensure safey when operating
    • Durable reservoir oil bath type cross slide.
    • Larger bed width which ensures higher rigidity and metal removal capability.

    High Speed Precision Lathes – X Series – Heavy Duty

    Standard Features

    • HEAD STOCK : All gears & mandrel are made of alloy steel, heat treated & precision ground.
    • SPINDLE : Large bore spindle supported by 3-point precision bearings, suitable for heavy metal removal
    • GEAR BOX : Universal Gear Box – cuts Metric, Imperial, Module threads. Rotating type speed changing system – easy to operate.
    • BED : High Tensile Ribs structure, High precision and wide bed surface, Hardened & Precision Ground 3V Bed Design.
    • BED TYPE : One piece structure lathe bed enhances the machine life & working performance
    • APRON & SADDLE : Longer, wider slide and carriage for stronger heavier cutting. Central lubricating system for slide.
    • TAIL STOCK : Bearing on the bottom side of Tail Stock can be moved easily. /li>
    • SAFETY : Provided with Overload protect safety device

    Semi-Auto Column Type Band Saws

    Features

    Standard Equipment’s:

    • Full stroke hydraulic vise cylinder.
    • Split vise holds work piece on both sides of saw blade. (CF-260SW/CF-360SW/CF-600SW only)
    • Quickly approach device.
    • Hydraulic blade tension.
    • Infinitely variable blade speed.
    • Bandsaw blade.
    • Tools with box.

    Option Equipment’s:

    • Vise pressure regulator.
    • Motion detector.
    • Auto-chip conveyor.
    • 2 meters roller table.

    Automatic Column Type Band Saws – CF-260AW

    Standard Equipment’s:

    • Hydraulic blade tension
    • Variable blade speed
    • Automatic chip conveyor
    • HSS Saw blade 1 pc
    • Tools with tool box

    Automatic Column Type Band Saws – CF-325BS/BSN

    Features

    Character:

    • Fully automatic dual hitch feed vice system. The material is supported by an independent roller feed bed
    • Full stroke hydraulic vice clamps
    • P.L.C. control system
    • Hydraulic blade tension
    • 34mm wide bi-metal blade
    • Variable blade speed control
    • Multiple bar clamps (BS) or Hydraulic pack clamps (BSN)
    • Full Height (320mm) vice jaws
    • Split front vice clamping
    • Automatic adjustment of moveable blade guide arm
    • Hydraulic feed pressure cutting system

    Automatic Column Type Band Saws – CF-360AW

    Features

    Character:

    • Fully automatic dual hitch feed vice system
    • Roller Feed Vise Bed assure material accurate positioning
    • Full Stroke hydraulic vice clamps
    • Split vise clamping system
    • Twin column design
    • P.L.C. control system
    • Hydraulic blade tension
    • 34mm wide bandsaw blade
    • Variable blade speed control
    • Automatic chip conveyor

    Automatic Column Type Band Saws – CF-460AW

    When considering the purchase of a fully automatic bandsaw the design and quality of the material feed system is the most important factor, as ultimately the design of the feed system will determine the reliability and accuracy of the cut pieces.

    The BigStone automatic bandsaws are all fitted with the a independent feed vice system, it is totally independent from the machine bed that supports the weight of the material when the feed vice is on the return stroke both vice jaws retract so as there is no contact on the sides of the material. Any contact on the side of the material will make the cut length accuracy inconsistent.

    The independent feed vice system in conjunction with the roller feed bed that is fitted as a standard feature on all the BigStone automatic bandsaws, also makes a significant reduction in the force required to feed the material.

    Automatic Column Type Band Saws – CF-600AW

    When considering the purchase of a fully automatic bandsaw the design and quality of the material feed system is the most important factor, as ultimately the design of the feed system will determine the reliability and accuracy of the cut pieces.

    The BigStone automatic bandsaws are all fitted with the a independent feed vice system, it is totally independent from the machine bed that supports the weight of the material when the feed vice is on the return stroke both vice jaws retract so as there is no contact on the sides of the material. Any contact on the side of the material will make the cut length accuracy inconsistent.

    The independent feed vice system in conjunction with the roller feed bed that is fitted as a standard feature on all the BigStone automatic bandsaws, also makes a significant reduction in the force required to feed the material.

    Semi-Auto Miter Cutting Band Saws – CF-350M

    Standard Equipment’s:

    • Tungsten carbide roller guides
    • Hydraulic vice cylinder
    • Saw blade (1 pc ) and tools with box
    • Fluid coolant system

    Option Equipments:

    • Inverter blade speed drive
    • 2M Roller table
    • Laser liner
    • Hydraulic top clamp

    Semi-Auto Miter Cutting Band Saws – CF-450M

    Standard Equipment’s:

    • Tungsten carbide roller guides.
    • Hydraulic vice cylinder.
    • Saw blade (1 pc ) and tools with box.
    • Fluid coolant system.

    Option Equipments:

    • Inverter blade speed drive
    • 2M Roller table
    • Laser liner
    • Hydraulic top clamp

    Semi-Auto Miter Cutting Band Saws – CF-535M

    Standard Equipment’s:

    • Tungsten carbide roller guides
    • Hydraulic vice cylinder
    • Saw blade (1 pc ) and tools with box
    • Fluid coolant system

    Option Equipment’s:

    • Inverter blade speed drive
    • 2M Roller table
    • Laser liner
    • Hydraulic top clamp

    Semi-Auto Miter Cutting Band Saws – CF-610DM

    Column Type Semi-Auto Double miter cutting bandsaws

    Standard Equipment’s:

    • Inverter blade speed drive
    • Hydraulic blade tension
    • Laser liner
    • Vice pressure regulator
    • Fluid coolant system
    • HSS Saw blade 1 pc
    • Tools with tool box

    Optional equipment:

    • Mist Lubrication
    • Hydraulic top clamp
    • Full height vice jaws
    • 2 meters roller table
    • 2 meters powered roller table
    • Material Feed System

    Semi-Auto Miter Cutting Band Saws – CF-650DMS

    Column Type Semi-Auto Double miter cutting bandsaws

    Standard Equipment’s:

    • Inverter blade speed drive
    • Hydraulic blade tension
    • Laser liner
    • Vice pressure regulator
    • Fluid coolant system
    • HSS Saw blade 1 pc
    • Tools with tool box

    Optional equipment:

    • Mist Iubrication
    • Hydraulic top clamp
    • Full height vice jaws
    • 2 meters roller table
    • 2 meters powered roller table
    • Material Feed System

    Semi-Auto Miter Cutting Band Saws – CF-705DMS

    Column Type Semi-Auto Double miter cutting bandsaws

    Standard Equipment’s:

    • Inverter blade speed drive
    • Hydraulic blade tension
    • Laser liner
    • Vice pressure regulator
    • Fluid coolant system
    • HSS Saw blade 1 pc.
    • Tools with tool box.

    Optional equipment:

    • Mist Iubrication
    • Hydraulic top clamp
    • Full height vice jaws
    • 2 meters roller table
    • 2 meters powered roller table
    • Material Feed System

    Semi-Auto Miter Cutting Band Saws – CF-800DMS

    Column Type Semi-Auto Double miter cutting bandsaws

    Standard Equipment’s:

    • Inverter blade speed drive
    • Hydraulic blade tension
    • Laser liner
    • Vice pressure regulator
    • Fluid coolant system
    • HSS Saw blade 1 pc.
    • Tools with tool box.

    Optional equipment:

    • Mist Lubrication
    • Hydraulic top clamp
    • Full height vice jaws
    • 2 meters roller table
    • 2 meters powered roller table
    • Material Feed System

    Semi-Auto Miter Cutting Band Saws – CF-1000DMS

    Column Type Heavy Duty Semi-Auto Double miter cutting bandsaws

    Standard Equipment’s:

    • Inverter blade speed drive
    • Hydraulic blade tension
    • Laser liner
    • Vice pressure regulator
    • Fluid coolant system
    • HSS Saw blade 1 pc.
    • Tools with tool box.

    Optional equipment:

    • Mist Iubrication
    • Hydraulic top clamp
    • Full height vice jaws
    • 2 meters roller table
    • 2 meters powered roller table
    • Material Feed System

    Semi-Auto Miter Cutting Band Saws – CF-1300DMS

    Column Type Heavy Duty Semi-Auto Double miter cutting bandsaws

    Standard Equipment’s:

    • Inverter blade speed drive
    • Hydraulic blade tension
    • Laser liner
    • Vice pressure regulator
    • Fluid coolant system
    • HSS Saw blade 1 pc
    • Tools with tool box

    Optional equipment:

    • Mist Iubrication
    • Hydraulic top clamp
    • Full height vice jaws
    • 2 meters roller table
    • 2 meters powered roller table
    • Material Feed System

    Automatic Miter Cutting Band Saws – CF-530HBM

    Column Type Heavy Duty Semi-Auto Double miter cutting bandsaws

    Standard Equipment’s:

      • Variable blade speed.

    Automatic chip conveyor.

    PLC control system.
    HSS Saw blade 1 pc.

    Tools with tool box.

    Optional equipment:

    • NC control system.
    • Nesting fixture.
    • Hydraulic blade tension.
    • Vise pressure regulator.
    • 2 meters roller table.

    Automatic Miter Cutting Band Saws – CF-350AM

    Column Type Heavy Duty Semi-Auto Double miter cutting bandsaws

    Standard Equipment’s:

    • HSS Saw blade 1 pc.
    • Tools with tool box.

    Optional equipment:

    • 1 meter roller table.
    • 2 meters roller table.

    CNC Double Miter Cutting Band Saw – 705DMA

    Column Type CNC Double Miter Cutting Bandsaws

    CNC Double Miter Cutting Band Saw – 5015DMA

    CNC Double Miter Cutting Band Saw

    CNC Double Miter Cutting Band Saw – 500DMA

    CNC Double Miter Cutting Band Saw

    Standard Equipment’s:

    • CNC with Touch screen control system.
    • Variable blade speed device.
    • Saw blade 1 pc.
    • Tools with tool box.

    Optional equipment:

    • 2 meter roller table

    High Precision Compact Cross Shaft Power Press – RPA Series

    Standard Accessories

    • Hydraulic Overload Protector
    • Slide Adjustment
    • Slide Adjust device
    • Die Height Indicator
    • PLC
    • Balance device
    • Rotary Cam Switch
    • Crank Angle Indicator
    • Electrical Stroke Counter
    • Air Source Receptacle
    • Against Over-run safety device
    • Manual Lubrication
    • Air ejector
    • Maintenance Tool Box
    • Operation Manual

    ‘H’ Type Single Crank Precision Press – RPF Series

    Standard Accessories

    • Hydraulic Overload Protector
    • Slide Adjustment
    • Slide Adjust device
    • Die Height Indicator
    • PLC
    • Balance device
    • Rotary Cam Switch
    • Crank Angle Indicator
    • Electrical Stroke Counter
    • Air Source Receptacle
    • Against Over-run safety device
    • Manual Lubrication
    • Air ejector
    • Maintenance Tool Box
    • Operation Manual

    ‘Closed door Type Double Crank Precision Steel Frame Presses – RPE Series

    Standard Accessories

    • Inverter
    • Crank Angle LED Display Electronic
    • Operation Mode selection
    • (Off – Inching – Safety one)
    • Stroke Continuous
    • Phydraulic Overload ProtectorLC
    • Overrun dectector
    • Portable 2 hand Push button Control
    • Dual Die Height Indicator ( 0.1mm)
    • Slide & Die Balancing Device
    • Total Counter – 6 digits
    • Preset Counter – 6 digits
    • Maintenance Counter – 4 digits
    • Life Counter – 6 digits
    • Electronic Rotary Cam Switch
    • ( 6 Spare Channel)
    • Air Ejector 1/2″ One channel
    • Air Source receptable 1/2″ two channel
    • Operation Manual

    Universal Cutter Grinder – PP-32N

    Features

    • The wheel heads can be rotated 3600 and be installed two wheels. Just rotate the wheel head, when need to grind the tool of different materials. It can increase the safety & save the time for changing &repairing the grinding wheel.
    • Adopts the precision 4″6-jaw awl type chuck. It can clip stably. At the same time, it can grind the cutting edge and web thickness of drills in one set-up. The both sides of drill angle and the edge length are equal. It could keep the accuracy of the center of drill without offset.
    • Easy operation, grind fast and precisely.

    Universal Tool & Cutter Grinder – PP-50

    Features

    • The wheel heads can be 360o and be installed two wheels. Just rotate the wheel head, when need to grind the tool of different materials. It can increase the safety & save the time for changing & repairing the grinding wheel.
    • Adopt high precision cross roller guide on the table. The table is stable and can be operated smoothly.
    • Adopt cast iron with high toughness. It can keep the precision of the machine in the long term.
    • There is a series of grinding attachments to choose from.

    Universal Tool & Cutter Grinder – PP-600

    Features

    • There are two types of wheel head: single or double.
    • Adopt high precision cross roller guide on the table. The table is stable and can be operated smoothly.
    • Adopt cast iron with high toughness.
      It can keep the precision of the machine in the long term.
    • There is a series of grinding attachments to choose from.

    Universal Tool & Cutter Grinder – PP-60N

    Features

    • There are two types of grinding wheels (5A & 12A) on Wheel head of PP-60N. The end & chisel edge can be ground without changing the grinding wheel.
    • For dressing grinding wheel, set the diamond dresser on the chuck and adjust the wheel head angle. The wheel motor can be adjusted 160mm vertically and rotate 180o. It can increase the function of machinery.
    • Adopts the precision awl type chuck. It can clip stably. At the same time, it can grind the cutting edge and web thickness of drills in one set-up. The both sides of drill angle and the edge length are equal. It could keep the accuracy of the center of drill without offset.
    • Easy operation, grind fast and precisely.

    Universal Tool & Cutter Grinder – PP-80N/100N

    Features

    • For dressing grinding wheel, set the diamond dresser on the chuck and adjust the wheel head angle. The wheel motor can be adjusted 160mm vertically and rotate 180o. It can increase the function of machinery.
    • Adopts the precision awl type chuck. It can clip stably. At the same time, it can grind the cutting edge and web thickness of drill in one set-up. The both sides of drill angle and the edge length are equal. It could keep the accuracy of the center of drill without offset.
    • Easy operation, grind fast and precisely.
X
