CNC Busbar Punching and Shearing Machine

busbar punching machine

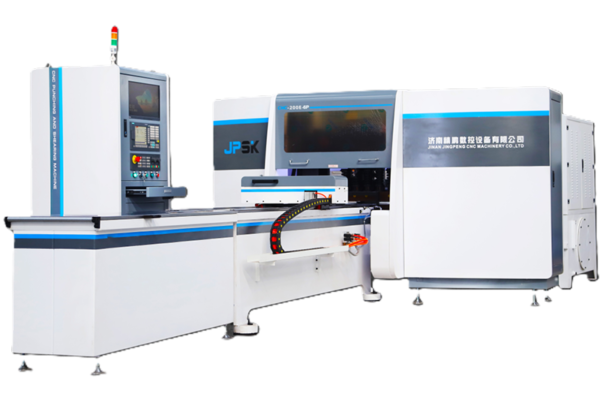

CNC-200E-6P / CNC-200-9P CNC busbar punching and shearing machine

  • Copper Busbar Punching Shearing Machine which with automatic feeding, automatic positioning, automatic clamping, automatic punching, automatic shearing, automatic embossing, automatic replacement of mold/ dies, automatic delivery.
  • The main function is processing copper and aluminum busbar with different specifications.
  • It use High automatic system, Complete the whole process automatically increases the efficiency.
  • The machine consists of the feeding table, the mold/dies group , the delivery table, the hydraulic power unit, the servo control unit and the electric control cabinet.
  • This machine is a three-dimensional machining unit consisting of three servo control axis and one hydraulic main axis, including X, Y feeding axis and Z mold/dies group axis.
  • The finished material conveying shaft cooperates with each other to complete the processing of copper and aluminum.
Enquiry
Whatsapp Us!

Description

Main Characters

  • The CNC busbar punching and shearing line adopts double clamps (the main clamp and the auxiliary clamp).
  • The CNC busbar punching and shearing line is controlled by Siemens CNC system.
  • The mold/dies group include six punches and one embossing mold (Or nine punches and one shearing), it can achieve different processing requirements of copper and aluminium, such as cutting, punching holes, oval holes, square holes, cutting corner and other processes.
  • Punching die is a self-developed product of our company.
  • The hydraulic part is driven by a three-phase asynchronous motor, It also has an oil temperature sensor (alarm when the oil temperature is too high or too low) and an air-cooled radiator.
  • The machine frame is processed by steel plate after welding, and high temperature quenching, vibration aging and other processes are used to eliminate internal stress, which ensures that the frame will not be deformed for a long time.

Related Products

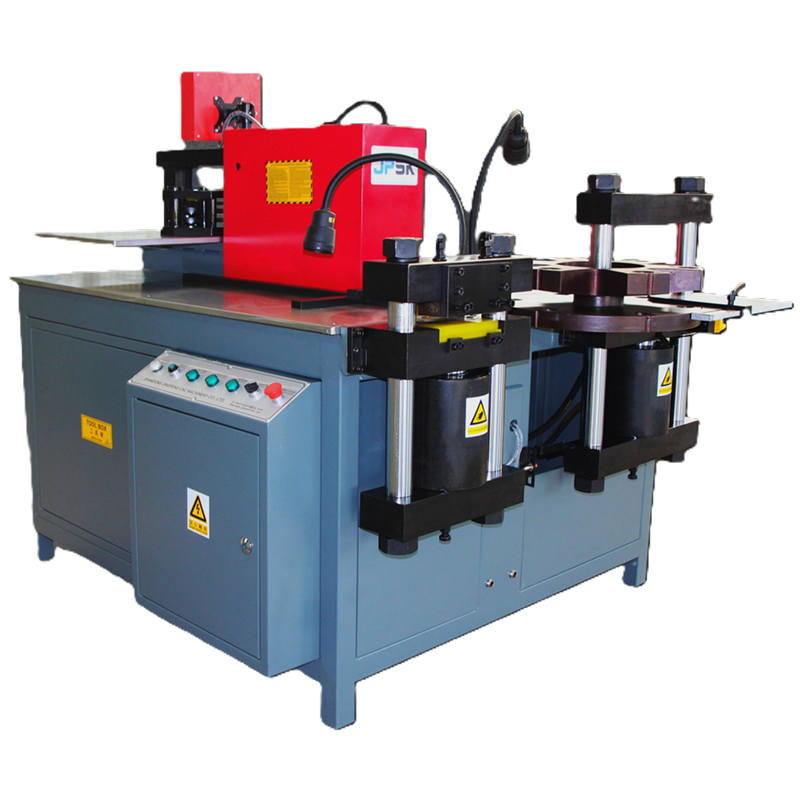

3 in 1 busbar machine

JPSK ESK Busbar Machine

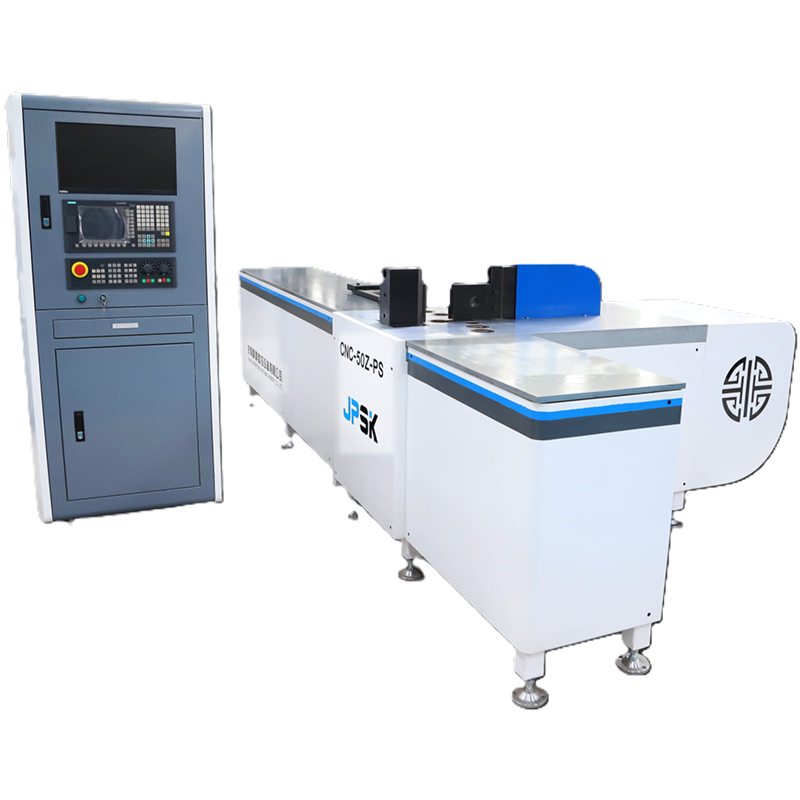

busbar bending machine

CNC 50Z PS Machine

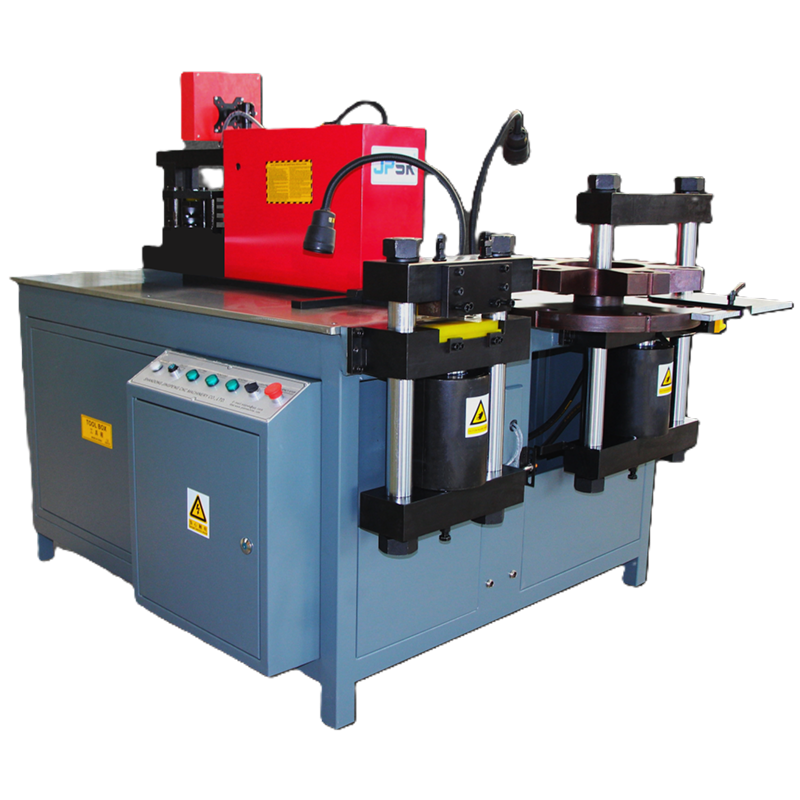

cnc busbar processing machine
