Swing Beam Shearing Machine

It is mainly used for cutting full-length and extra wide sheets. Our swing beam type shears still remain the pacesetters in the price/quality ratio market of today. All our QC12 series shears are equipped with power rake angle adjustment function.

Model: WAD
Controller Brand: DELEM, CYBELEC, ESA
Capabilities: 120T – 1600T

Whatsapp Us!

Description

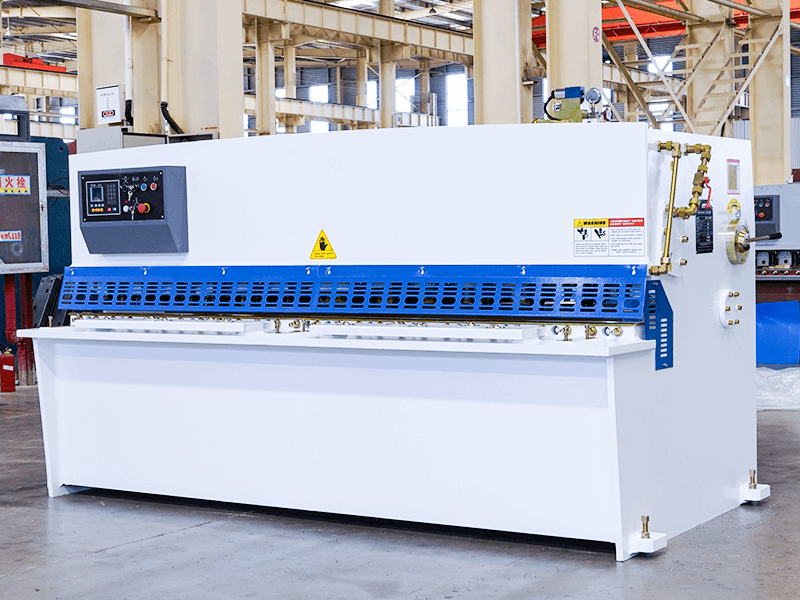

Structure

The design of the shearing machine includes a box bed frame completely welded with the workbench.
The frame can produce high stiffness to balance the torque load generated by shear force.
Vertical linear movement relative to the lower blade to ensure that the shear sheet has less distortion and more accurate straightness.
The main frames, after welding & milling, are heat treated, Annealed in an Annealing furnace to relieve the stresses caused by the above action. This gives better rigidity to the structure.

Control System

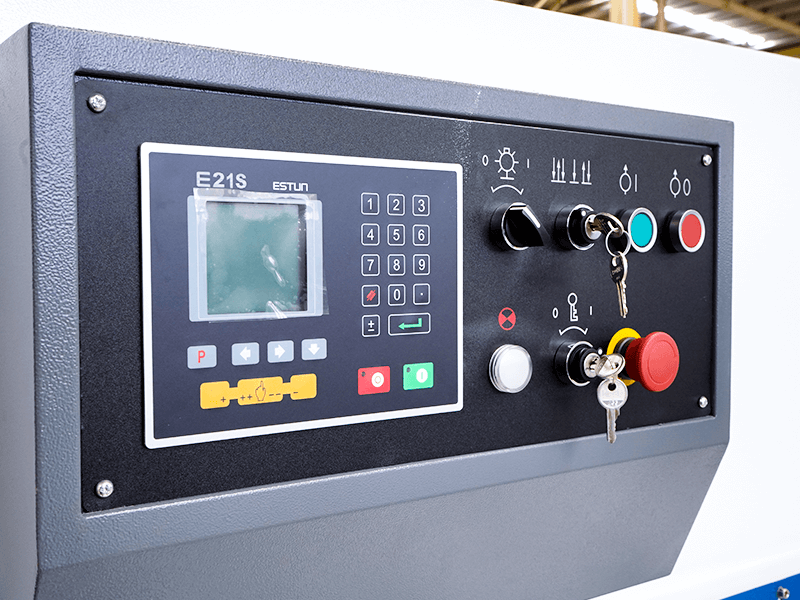

Estun E21S digital display controller is provided for NC Shearing Machines.
The back stop, blade angle and blade gap can be controlled and adjusted in the system.
The controller is DAC360 CNC system of Delem brand in the Netherlands (now upgraded to DAC360T touch screen) for CNC Shearing Machine

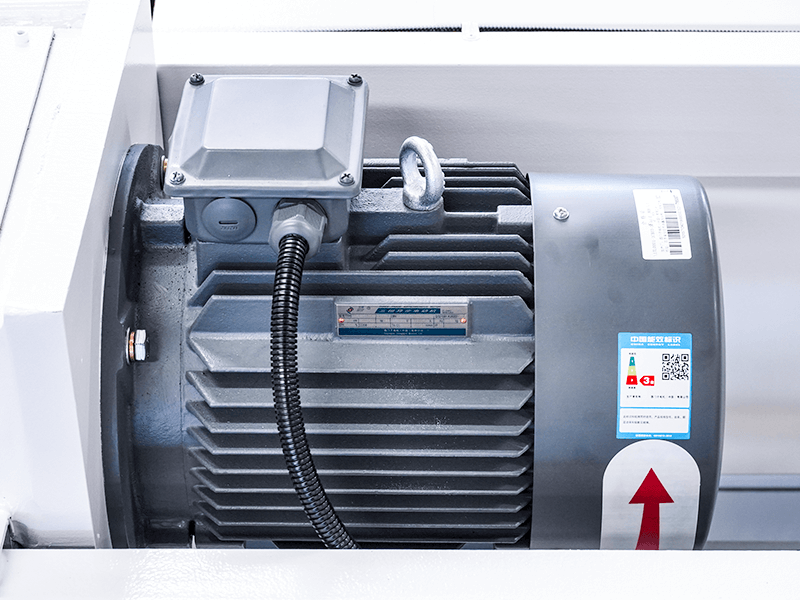

Main Drive

High performance main motor can be equipped with international brand such as Siemens or Chinese famous brand WN.
Country specific Voltage customization can be done

Hydraulic Valve

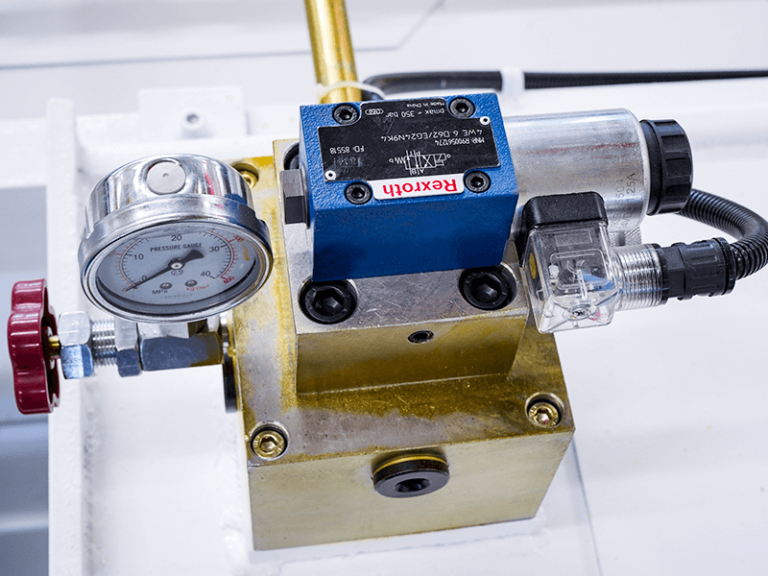

International brand Rexroth hydraulic valve block is adopted.
With oil pressure overload protection, oil leakage and valve jamming are rare.
Real time oil pressure monitoring to ensure smooth oil circuit and stable running of the equipment.

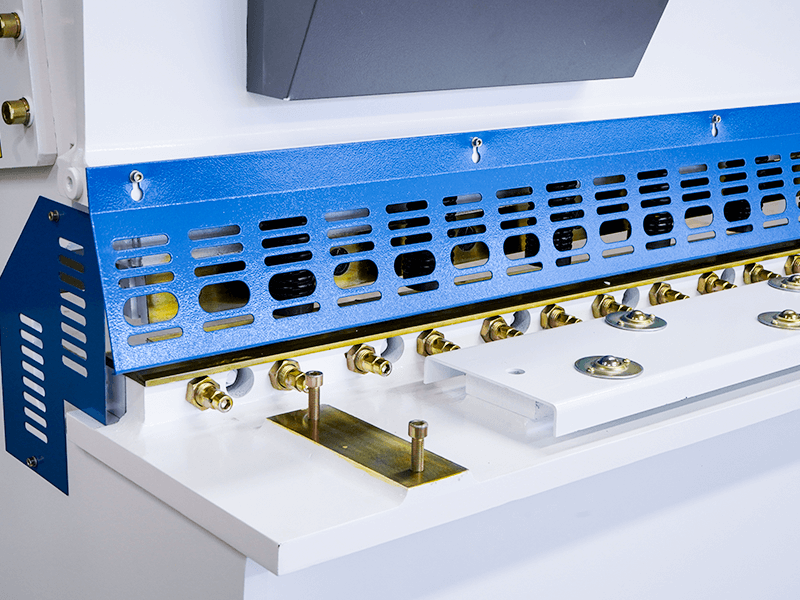

Feeding Port

The design of feed port complies with international safety standards.
The minimum feeding height is the sheet thickness, and the maximum is the sheet thickness plus 20-25mm. There are adjustable height screws to adjust the feeding height.
The front fence and side guardrail ensure safe operation.

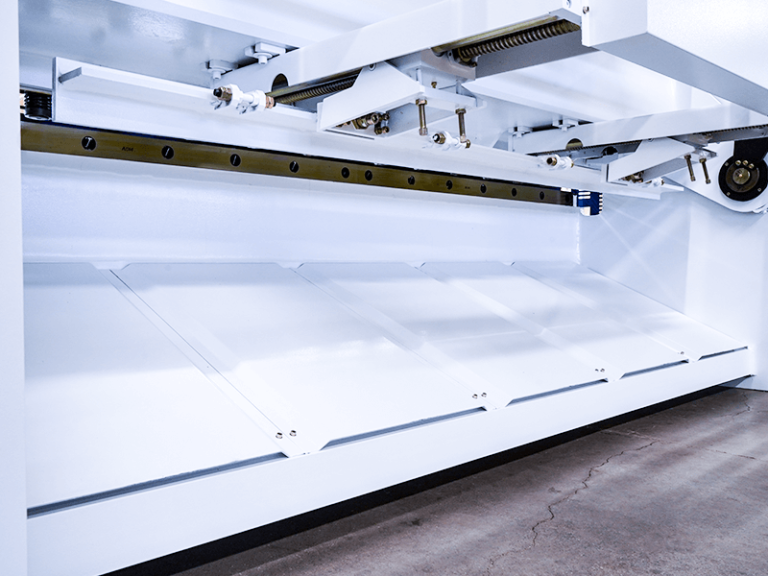

Servo driven Back gauge

Pneumatic rear support device and rear light curtain protection device are optional.
The automatic rear support plays a supporting role in cutting the thin plate to ensure the cutting accuracy and surface finish of the plate.
The rear light curtain protection protects personal safety during the operation of the machine and complies with international safety standards.
The rear servo reduction motor has good quality and fast positioning speed of simulation operation.

Motorized Cutting Angle Adjustment

The motorized shearing angle adjusting device saves the trouble of manual adjustment and can automatically adjust the shearing angle according to the plate thickness.

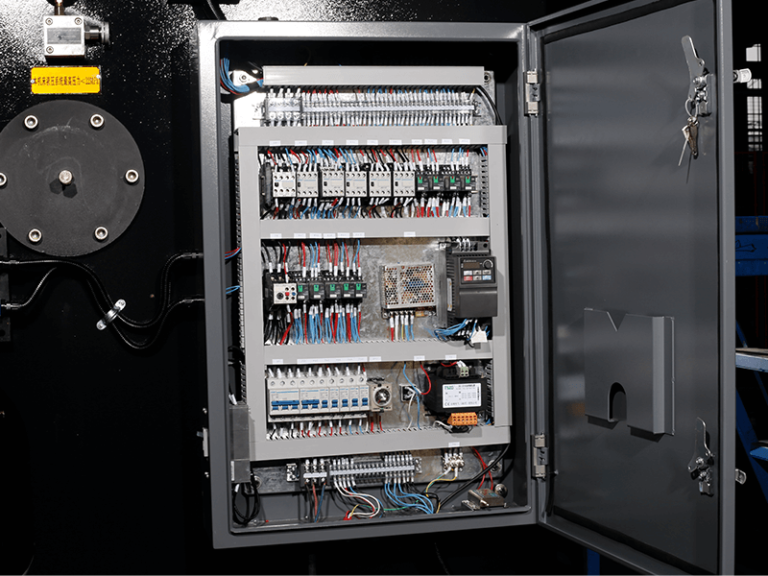

Electrical Components

High-quality electrical components are adopted, which are stable and durable with long service life.

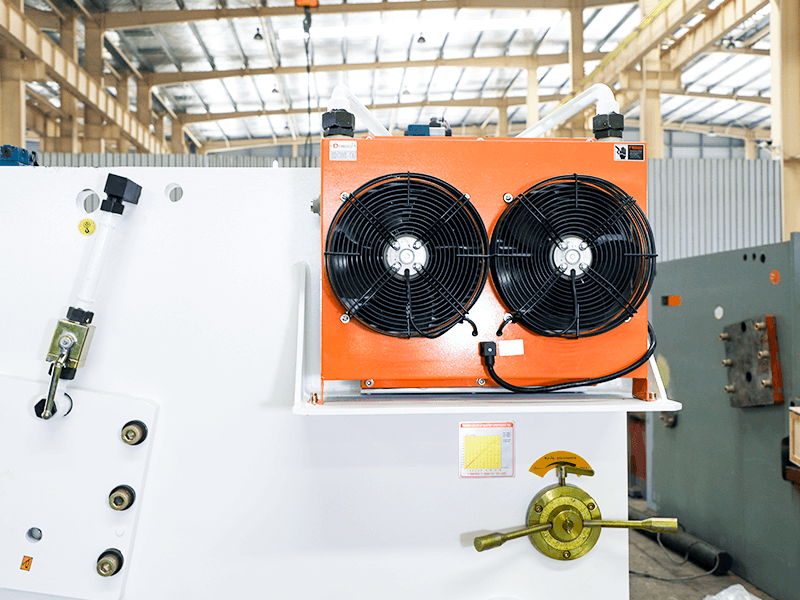

Hydraulic Oil Cooling Device

In high temperature environment, the machine can be used continuously for a longer time.

Pneumatic Rear Support

It is convenient for customers to cut wide sheets, which can be closed with one key when not in use.

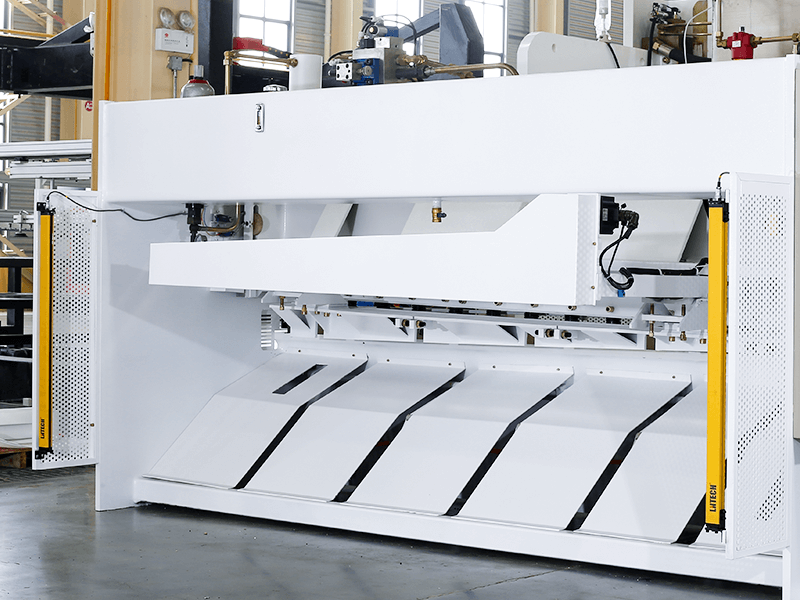

Rear Protection Device

Photoelectric protection to protect personal safety, especially finger safety.

Lubrication Device

It is more convenient and faster. There are two models: automatic and manual, which are convenient for customers to choose.

Ball Integrated Front Tables

The ball type front support reduces the friction between the plate and the table, and ensures the smoothness of the plate surface.
The feeding is more convenient and fast, and the cutting efficiency is improved.

Cutting Line Illumination

It is equipped with light alignment device, which is convenient for marking and shearing, and can stepless adjust the stroke of the blade holder.
